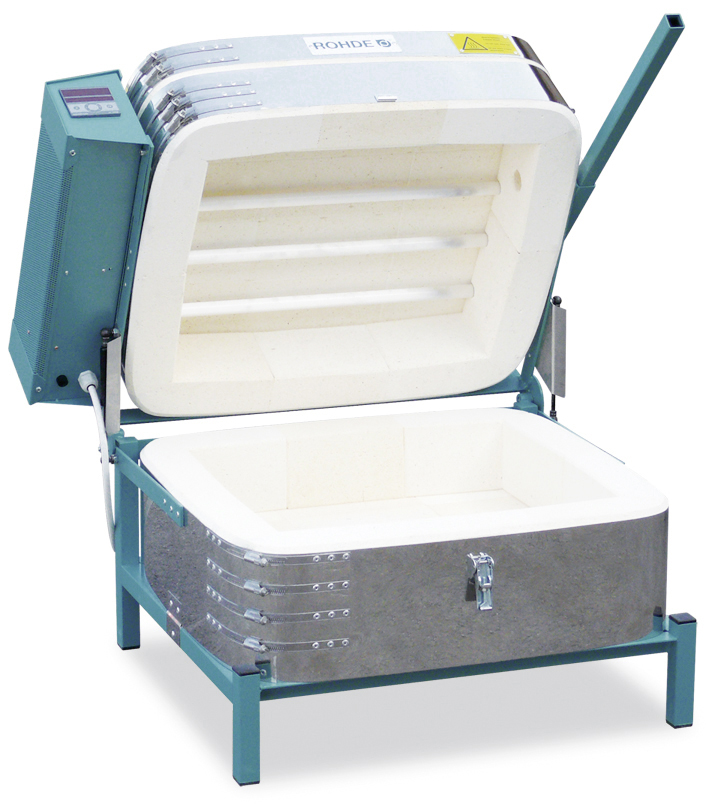

Rohde fusing kiln 40 / 230 V,incl. Cotroller ST 411,
int. dimensions: ca. 500 x 400 x 210 mm,
ext. dimensions: ca. 850 x 650 x 510 mm,
Tmax. = 950°C-1/N/PE 230 V,50 HZ,16 A,3,6 KW,
wired cotroller Stafford ST 411.
KILN:
- Insulation structure made of lightweight firebricks,free of ceramic fibres,

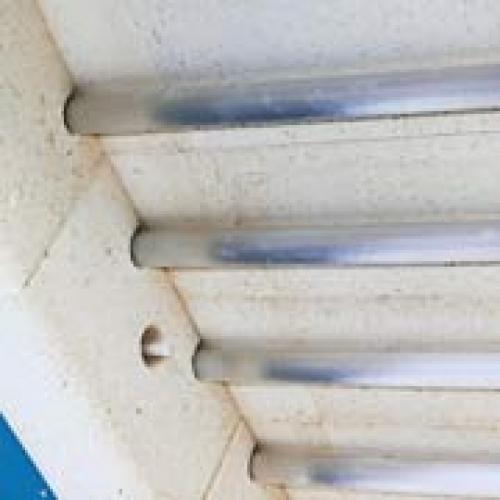

- high-quality infrared radiators,
- low external temperatures at maximum temperature 950°C,
- power control effected by silent,low-wear solid-state relays with external cooling element,
- lid easy to-open supported bv gas pressure springs.

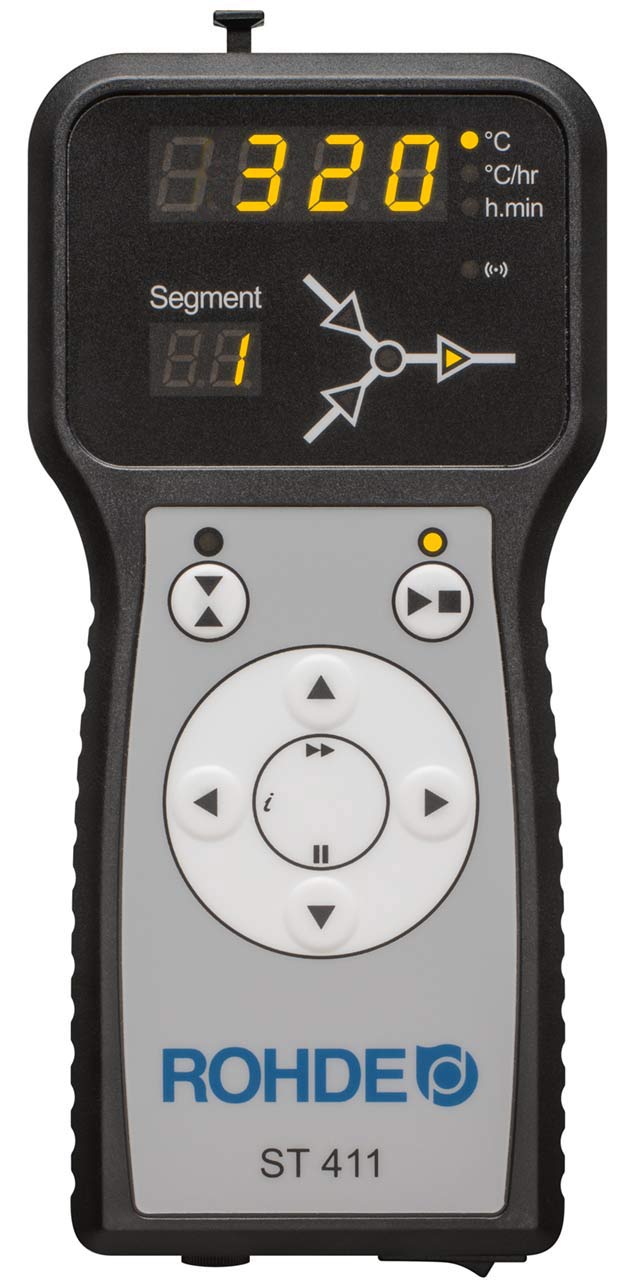

CONTROLLER:
- control system with USB interface including USB stick,
- 1-zone control,
- 32 firing programs with 32 firing segments each,
- 1 regulated heating / cooling ramp and holding time per segment,
- hold times up to 99:59 h,
- heating rates between 1 and 999°C / h or "FULL",
- USB interface for data logging,
- CPC14 plug connection,assignment: Rohde standard,
- WiFi module for connection to the Rohde app,
- 1 x freely programmable switching output,
item number: 3500200
